Your engine’s EGR valve helps to control emissions, and if it becomes clogged or damaged, it can cause all sorts of problems. But, will a bad EGR valve cause a rough idle?
In this blog post, we will discuss the symptoms of a bad EGR valve and how to fix it. We will also cover some of the other causes of a rough engine, so you can get your car back on the road as quickly as possible!
- Key Takeaway
- What Is a Rough Idle in a Car
- Will a Bad EGR Valve Cause Rough Idle?
- Will EGR Valve Cause Hard Starting?
- Can You Start a Car Without EGR?
- How Do You Test an EGR Valve Without a Vacuum Pump?
- 1. Required tools for the job
- 2. Scan the vehicle to verify the problem
- 3. Open the hood and locate the EGR valve and the solenoid
- 4. Disconnect the EGR valve and solenoid
- 5. Connect the plastic straw to the bottom EGR solenoid connector
- 6. Start your vehicle
- 7. Connect the makeshift vacuum source to the EGR valve
- FAQs
- Q: What are the symptoms of a bad EGR valve?
- Q: Can a faulty EGR valve cause stalling?
- Q: How can I test if my EGR valve is working properly?
- Q: Can I clean the EGR valve myself?
- Q: How often should the EGR valve be replaced?
- Q: Can I drive with a bad EGR valve?
- Q: How much does it cost to replace an EGR valve?
- Q: Are there any temporary fixes for a bad EGR valve?
- Q: Can a bad EGR valve cause engine damage?
- In Conclusion
Key Takeaway
- A bad EGR valve will often cause a rough idle by allowing more exhaust gases in the combustion chamber than needed and disrupting the air-to-fuel mixture.
- A bad EGR valve can cause hard starting by sending unexpected air into the combustion chamber.
- You can start a vehicle with a bad EGR valve, but you shouldn’t drive it like that because it is illegal.
What Is a Rough Idle in a Car

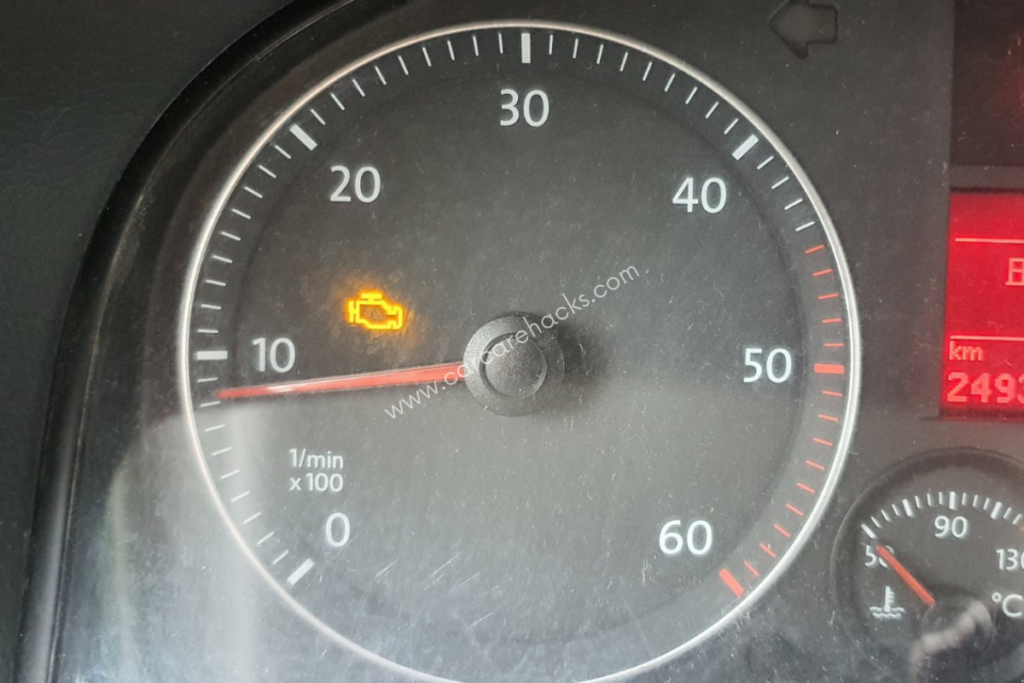

A rough idle in a car refers to an irregular or uneven engine vibration when the vehicle is stationary with the engine running.
This condition is often characterized by shaking or bouncing sensations felt in the car, inconsistent RPMs on the tachometer, and can sometimes be accompanied by unusual sounds from the engine.
Rough idling can be caused by several issues including problems with the spark plugs, fuel injectors, vacuum leaks, an unbalanced air-to-fuel ratio, or even a malfunctioning sensor.
It’s important to address this issue promptly as it can potentially lead to more serious engine damage over time.
Will a Bad EGR Valve Cause Rough Idle?
Yes. A bad EGR valve can cause a rough idle as it allows more exhaust gases into the combustion chamber than necessary, disrupting the air-to-fuel mixture
If the EGR valve is stuck in the open position more exhaust gas goes into the engine intake making the engine starve for fresh air.
This is where the tricky part is. The MAF sensor is responsible for measuring the amount of air flowing into the engine. The information from the sensor is then used by the engine control unit to calculate the correct amount of fuel to inject.
So, if the EGR valve is stuck open and pushes a lot of exhaust gases into the combustion chamber, the MAF sensor will measure that amount of air and will throw in the required amount of fuel for proper combustion. However, the MAF sensor doesn’t understand that this ”air” is actually not fresh air. It is actually recirculated hot exhaust gases that have less oxygen, whereas the fresh air is cooler and has more oxygen.
At this point, the bad EGR valve has filled out the combustion chamber with recirculated exhaust gasses that are low in oxygen, and the MAF sensor has measured this air and notified the computer to send the required amount of fuel.
But, the recirculated exhaust gases do not burn as well as fresh air due to the lack of oxygen, therefore, the combustion process is not proper as there is more fuel than oxygen in the combustion chamber. This results in rough idle and you can really feel the vibrations especially when the car is warmed up.
Will EGR Valve Cause Hard Starting?
When an EGR valve gets stuck open, it lets air into the intake that the engine isn’t expecting. When that happens, there’s not enough fuel for the engine to burn and that can definitely cause hard starting.
The amount of oxygen coming through the EGR valve is constantly changing when you first start the car up. So, it’s difficult for the engine computer to compensate for a bad EGR.
The EGR valve takes exhaust gasses that are high in nitrous oxides and recirculates them back into the engine and it actually cools the combustion chamber and allows the engine to run better.
This really helps the vehicle and the environment as it cools down the combustion chamber and therefore less NOx is produced. However, if the EGR valve is stuck open, it will constantly recirculate exhaust gases into the combustion chamber.
When you start your vehicle, the engine requires fresh air and fuel in order to start. But, the bad EGR valve will send unexpected air into the combustion chamber and will throw off the air-to-fuel ratio. Therefore, the vehicle will have a hard time starting.
An EGR valve can cause hard starting in a number of ways. First, if the EGR valve is not opening when it should, the engine will run leaner than normal and may misfire. Second, if the EGR valve is sticking open, exhaust gases will enter the intake manifold and dilute the air/fuel mixture.
This can also lead to Lean mix symptoms like misfires. Third, a failed EGR valve can cause an unwanted vacuum leak. Any of these conditions can make it difficult to start your engine, especially if it’s cold outside.
Can You Start a Car Without EGR?
Yes, you can start a car without the Exhaust Gas Recirculation (EGR) valve, but it may not idle well and could potentially harm the engine over time due to increased cylinder temperatures and excessive NOx emissions.
Additionally, the engine may run hotter without the EGR valve, which could cause damage over time. For these reasons, it is generally advisable to have an EGR valve in your car.
The only time you would actually want to start a car without an EGR is when you just want to drive to the repair shop. Let’s say that your EGR has malfunctioned and has left you in the middle of the road. You might know what is the problem or you have scanned your vehicle and seen some error codes associated with the EGR.
Then and only then it is advisable to drive the vehicle without an EGR. Driving without an EGR for a longer period of time will cause damage to the engine and will pollute the environment. Plus, in most states, it is actually illegal to drive without an EGR says Axle Addict.
How Do You Test an EGR Valve Without a Vacuum Pump?
- Scan the vehicle with an OBD2 scanner to verify the problem. Usually, you will see a P0401 code.
- Open the hood and locate the EGR valve and the solenoid. It is usually located on the side of the engine near the firewall.
- Disconnect the EGR valve and solenoid. There is a vacuum line on top of the EGR valve that you need to disconnect.
- Connect the plastic straw to the bottom EGR solenoid connector.
- Start your vehicle.
- If the EGR valve is working properly, the engine should stall.
- Reconnect everything back.
The EGR valve is an important component of the vehicle’s emission control system. It helps to reduce pollutants in exhaust gases by recirculating a portion of the exhaust gas back into the engine cylinders. Testing the EGR valve is an important part of regular maintenance for your vehicle.
There are a few different ways that you can test the EGR valve. One way is to check for proper vacuum operation with a vacuum pump. Another way is to check for proper electrical operation with an ohmmeter. But, how do you test an EGR valve without a vacuum pump? Here is how:
1. Required tools for the job
- OBD scanner
- Plastic straw
- Rubber Tube (small piece)
2. Scan the vehicle to verify the problem
Before you test your EGR valve without a vacuum pump, you will need to verify that the valve is faulty. To do so, you will need to connect an OBD scanner to your vehicle’s port and hit scan.
There are quite a few OBD scan codes associated with a faulty EGR valve. Some of the most common ones are P0401, P0402, and P1404. If you’re getting any of these codes, it’s likely that your EGR valve is the culprit.
3. Open the hood and locate the EGR valve and the solenoid

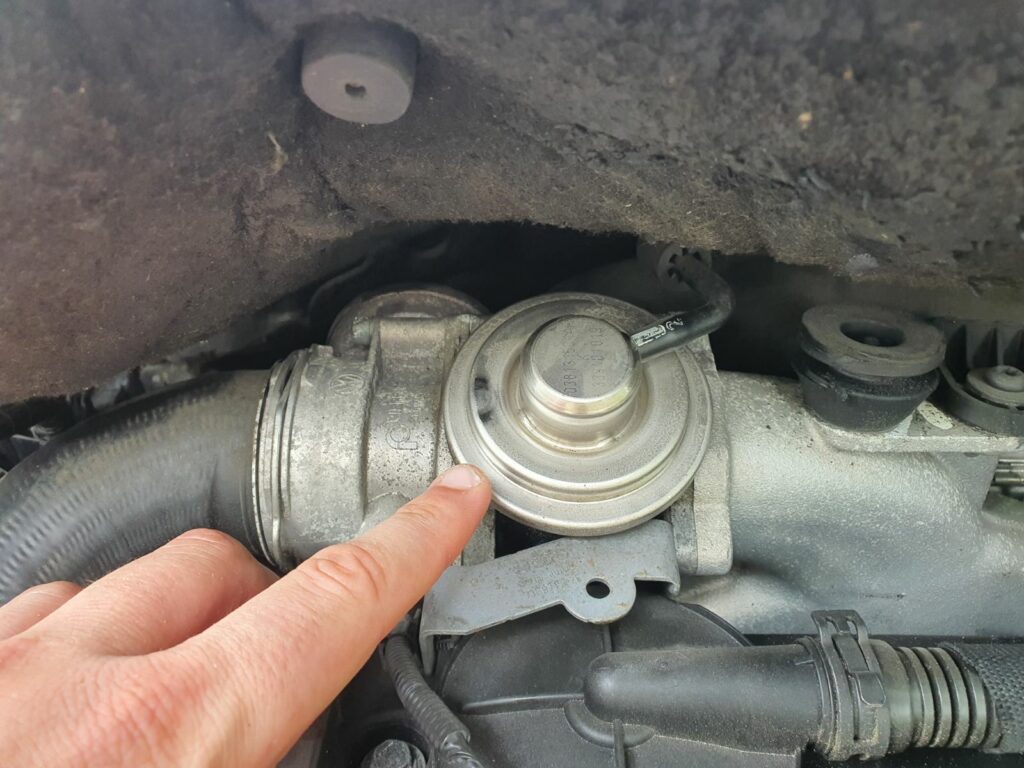

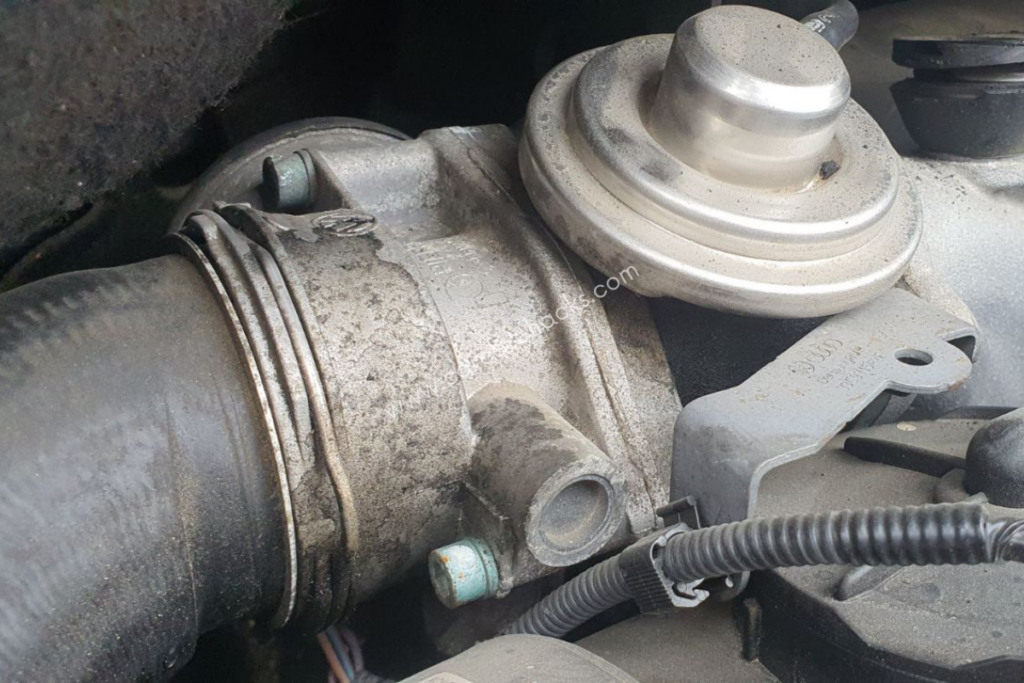

The EGR valve is located in the engine compartment, usually on the side of the engine near the firewall. The EGR valve will have a vacuum line on top of it. You may need to remove other components to get to the EGR valve, such as the air intake hose or throttle body.
The vacuum line on top of the EGR valve will run to the EGR solenoid. This is how the EGR valve is operated on command. Each time the engine requires exhaust gases to be recirculated, the solenoid will open or close the EGR valve using a vacuum.
4. Disconnect the EGR valve and solenoid
Remove the vacuum line that supplies vacuum to the EGR valve simply by pulling out the rubber tube. Then, detach the connector on the EGR solenoid as well. You will notice that there are two tubes that run to the solenoid. You will need to use the bottom tube as a vacuum source for the following test.
5. Connect the plastic straw to the bottom EGR solenoid connector
Now, the bottom tube of the EGR solenoid connector will be used as a vacuum source. In it, you need to insert the plastic straw on one end and connect a rubber tube on the other end. This rubber tube will be then used to be connected to the EGR valve in order to test it.
If your EGR valve is working properly, the engine should stall when you connect the rubber tube to the EGR valve.
6. Start your vehicle
Start your engine but do not attach the makeshift vacuum source to the EGR valve yet. First, you will need to start your vehicle without it and see if it runs correctly. Just make sure that your garage door is open so the exhaust fumes can safely escape.
7. Connect the makeshift vacuum source to the EGR valve
Once you verify that your vehicle is running correctly, connect the makeshift vacuum source to the EGR valve. Once you do this, if your EGR valve is working properly, the engine should stall. If your engine doesn’t stall, then the EGR valve is faulty and has to be either cleaned or replaced.
FAQs
Q: What are the symptoms of a bad EGR valve?
A: Some common symptoms of a bad EGR valve include rough idle, engine hesitation or misfire, decreased fuel efficiency, and the presence of a strong smell of fuel. Additionally, you may experience a loss of power, difficulty starting the engine, or even a check engine light illuminating on the dashboard.
Q: Can a faulty EGR valve cause stalling?
A: Yes, a faulty EGR valve can potentially cause stalling. If the valve fails to close properly, it can allow excessive amounts of exhaust gases into the intake manifold, affecting the air-fuel mixture and potentially leading to engine stall.
Q: How can I test if my EGR valve is working properly?
A: There are a few methods to test the functionality of an EGR valve. You can start by performing a visual inspection to check for any signs of damage or carbon buildup. Additionally, you can use a multimeter to test the resistance of the valve or perform a vacuum test using a hand vacuum pump. However, it is generally recommended to consult a professional mechanic for accurate diagnosis and testing.
Q: Can I clean the EGR valve myself?
A: Cleaning the EGR valve can help resolve some issues caused by carbon buildup, but it is not always a permanent solution. You can try using a specialized EGR cleaner and a soft-bristle brush to remove carbon deposits. However, it is important to note that cleaning may not fix all problems, and if the valve is severely damaged or malfunctioning, it may need to be replaced.
Q: How often should the EGR valve be replaced?
A: The lifespan of an EGR valve can vary depending on several factors such as the vehicle’s make and model, driving conditions, and maintenance. As a general guideline, it is recommended to have the EGR valve inspected and tested during routine maintenance intervals specified by the manufacturer. If any issues are detected, the valve may need to be replaced.
Q: Can I drive with a bad EGR valve?
A: In most cases, it is not advisable to drive with a bad EGR valve. A faulty EGR valve can negatively affect engine performance, emissions, and fuel efficiency. It is best to have the valve inspected and repaired or replaced as soon as possible to prevent further damage to the engine.
Q: How much does it cost to replace an EGR valve?
A: The cost of replacing an EGR valve can vary depending on several factors such as the vehicle’s make and model, the location of the repair, and whether the replacement is an OEM (Original Equipment Manufacturer) or aftermarket part. On average, the cost can range from $200 to $500, including parts and labor.
Q: Are there any temporary fixes for a bad EGR valve?
A: While there may be some temporary fixes for certain EGR valve issues, it is important to note that these fixes might not provide a long-term solution. For example, you can try cleaning the valve to remove carbon deposits or temporarily disconnecting it to see if the rough idle improves. However, these fixes should be seen as temporary measures, and it is still recommended to have the valve inspected and repaired or replaced by a professional mechanic.
Q: Can a bad EGR valve cause engine damage?
A: If left unaddressed, a bad EGR valve can potentially lead to engine damage. Problems such as excessive carbon buildup, improper air-fuel mixture, or engine misfire can put additional stress on various engine components, leading to premature wear or even severe damage. It is best to have any EGR valve issues diagnosed and repaired promptly to prevent further damage to the engine.
In Conclusion
The EGR valve is a vital component of an engine’s exhaust system and can play a major role in causing rough idle.
A defective or clogged valve can interfere with the amount of air entering the cylinders, resulting in misfiring and poor fuel economy.
If your vehicle has been experiencing rough idle, it’s important to have the EGR valve checked by a professional mechanic to identify any potential problems.
