Maintenance Tips, Tricks And Hacks For Your Vehicle

Why Is Coolant Coming Out Of The Overflow Tank [6 Common Causes]




Your car’s cooling system is one of the most important parts of the vehicle. It helps to keep the engine running at a consistent temperature, no matter what conditions you are driving in. If there is a problem with the cooling system, it can cause major damage to the engine. One common issue that people experience is coolant coming out of the overflow tank. In this blog post, we will discuss six common causes of this problem.

The most common causes of coolant coming out of the overflow tank are a broken overflow tank cap, too much coolant in the system, a faulty thermostat that is not opening and allows the coolant to heat up too much, clogged radiator, a blown head gasket, and a faulty water pump.

Key Takeaway

Why Is Coolant Coming Out Of The Overflow Tank [6 Common Causes]

  • Broken overflow tank cap
  • Too much coolant in the system
  • A faulty thermostat that causes the coolant to heat up too much
  • Clogged radiator
  • Blown head gasket
  • Faulty water pump

What Is The Purpose Of Overflow Tanks?

Why Is Coolant Coming Out Of The Overflow Tank [6 Common Causes]

The purpose of car overflow tanks is to provide a storage space for coolant or other engine fluids that expand and contract due to changes in temperature. During the winter months, liquids often contract more rapidly than any other time of year. This means expansion tanks can be necessary for preventing an engine from becoming too full with liquid and overflowing onto the ground or causing damage internally.

The overflow tank also prevents engines from becoming too empty of liquid as well by providing a source of water or coolant when needed. This part of the vehicle is commonly located in the front of most cars near the top radiator hose. It acts as a reservoir that is able to catch extra fluid as it rises but also releases it back when pressure builds up too fast and makes sure all fluid levels are even throughout the system.

Additionally, car overflow tanks enable drivers to inspect their vehicle’s liquid reserves without having to open up any lines connected to the cooling system. They’re usually very affordable parts. So, if your car requires an overflow tank fix, be sure to get one soon.

All in all, car overflow tanks offer great advantages for car owners looking to maintain proper liquid levels in their vehicles and avoid potentially catastrophic problems down the line.

Types Of Overflow Tanks

Why Is Coolant Coming Out Of The Overflow Tank [6 Common Causes]

It is important to understand the different types of overflow tanks in cars as this can help you maintain your car’s cooling system. The most common type is an expansion tank, which allows both coolant and air to expand in hot weather and then cool down. This is connected to the radiator via a hose and typically has a low-level switch that triggers when the fluid level drops.

The next type of overflow tank found in cars is the surge tank, which acts as a buffer for preventing coolant from spilling over into other parts of the vehicle. One benefit of surge tanks is that they allow systems with multiple heat sources to share coolant without having to mix it.

Finally, there are also recovery tanks, which allow coolant to recirculate throughout your cooling system as it cycles. Recovery tanks require more maintenance due to their constant contact with antifreeze and should be routinely checked for leaks and deposits. All three types of overflow tanks serve an important function in maintaining proper engine temperature, so understanding them can help keep your car running smoothly.

Why Is Coolant Coming Out Of The Overflow Tank [6 Common Causes]

Why Is Coolant Coming Out Of The Overflow Tank [6 Common Causes]

If you see coolant coming out of the overflow tank, it could be due to the following six reasons:

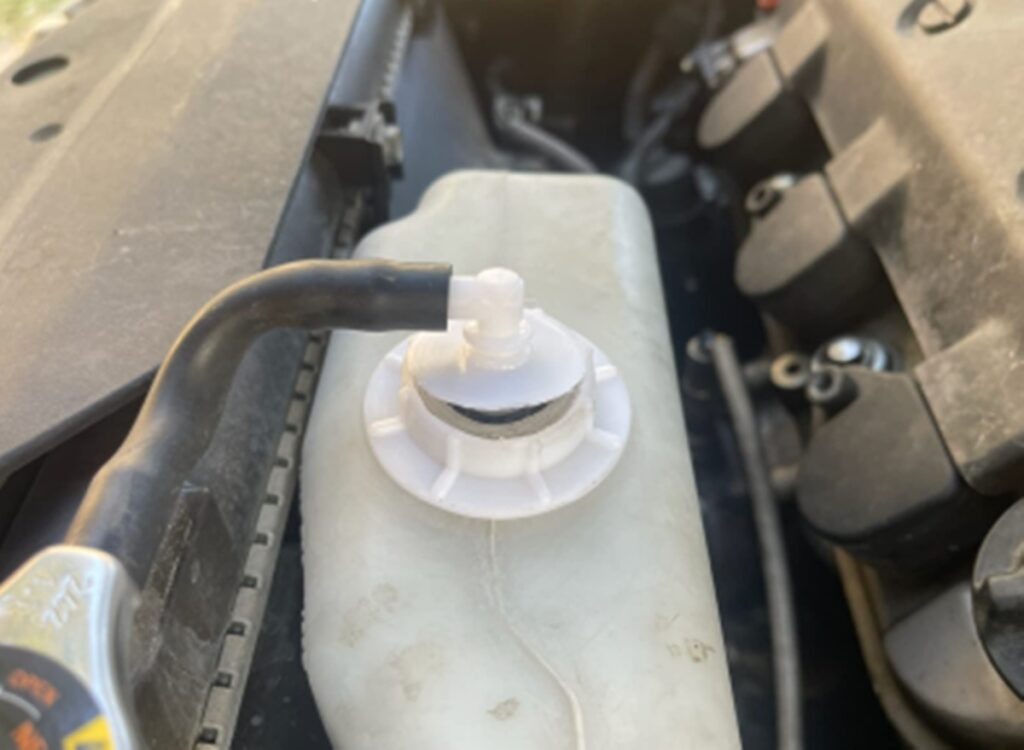

1. Broken overflow tank cap

Why Is Coolant Coming Out Of The Overflow Tank [6 Common Causes]

If you’ve recently noticed that coolant is coming out of the overflow tank in your car, it could be due to a broken overflow tank cap. An old or faulty cap can cause the internal pressure of the cooling system to rise, and when this increases too much, coolant will be forced out and leak from the overflow tank. This can be especially problematic if your vehicle heats up quickly – as it has less time to expel any excess heat, a bad cap can lead to overheating and serious engine damage.

Fortunately, replacing the defective cap usually takes care of this issue quickly and easily. To confirm if a bad cap is causing the problem, start by looking for signs like overflowing coolant or white smoke from under the hood. If either is present, then it’s advised to have a professional inspect and test the cap before simply replacing it. Doing so can help ensure that you don’t waste money on repairs that aren’t actually necessary!

So if you’re concerned about a potential bad overflow tank cap, make sure to assess what’s going on and take action right away! If anything seems out of the ordinary or off-putting in terms of your reservoir’s performance, the best thing to do may simply be to replace its worn-out part before further issues arise completely unchecked.

2. Too much coolant in the system

Why Is Coolant Coming Out Of The Overflow Tank [6 Common Causes]

Coolant coming out of the overflow tank is a common symptom you may experience when your cooling system has too much coolant. A system with too much coolant will raise the pressure in the tank, causing a continuous release of liquid coolant into the overflow as an attempt to equalize pressure.

The extra fluid also could push the cap up higher than normal due to increased pressure which can be seen on inspection. This symptom should not be ignored and should immediately be taken care of for two critical reasons: first, if you see too much coolant in the tank, it means that some type of issue prevented proper expulsion and your engine may already have been damaged; second, if you keep driving with a full overflow tank then it might cause serious damage like a leak in the cooling system or even total engine failure due to complete loss of coolant.

To rectify this issue, you need to pinpoint why there is too much coolant in the first place whether it’s because of an incorrect ratio mixture or another underlying cause such as a faulty radiator cap, and fix it before further damage occurs.

Most cars can hold up to three gallons of coolant in the radiator, however, you should not fill the overflow tank more than thirty percent! This way, you will ensure that there isn’t too much coolant in the system.

3. Faulty thermostat that causes the coolant to heat up too much

Why Is Coolant Coming Out Of The Overflow Tank [6 Common Causes]

In most vehicles, the coolant reservoir acts both like a gas tank and a water cooler. It collects unused coolant from the radiator, stores it until it’s needed, and then sends the coolant back to the engine when temperatures get too hot.

If something is wrong with your vehicle’s cooling system, you might notice that the reserve tank is overflowing or that there are bubbles being created in the liquid inside. This could be an indication of a problem with your thermostat. If your thermostat is sticking, it may cause the engine to heat up too much, so much so that your car can’t keep up and starts leaking coolant into the overflow tank.

The thermostat in a car plays an important role in keeping the engine running at its optimal temperature. A thermostat is essentially a valve that regulates the flow of fluid from the radiator to the engine block.

When temperatures begin to rise too high, the thermostat opens and allows coolant to flow into the cooling system, which then lowers the temperature. On the other hand, if temperatures become too low, the thermostat will close off and prevent coolant from entering, preventing engine damage from freezing water.

Essentially, it’s essential for drivers to check their car’s thermostat on occasion in order to ensure that their car is operating at its best and providing them with a comfortable ride every time they get behind the wheel!

4. Clogged radiator

Why Is Coolant Coming Out Of The Overflow Tank [6 Common Causes]

Many car owners have experienced the frustration of discovering that coolant is coming out of their vehicle’s overflow tank. In many cases, this can be due to a clogged radiator.

When the radiator gets clogged with debris or stops working efficiently, it won’t be able to handle the heat generated by the engine, leading to an accumulation of pressure within the cooling system. As a result, coolant will start leaking into the overflow tank and eventually onto the ground.

If you notice that your coolant is overflowing, it’s important to check your radiator as soon as possible. A clogged radiator can cause various issues ranging from poor engine performance and inefficiency to catastrophic failure if left uncared for.

Fortunately, there are several things you can do to help prevent this problem. This includes replacing dirty coolant on a regular basis and inspecting and cleaning other components like thermostats, hoses, and fan belts.

If it’s too late for prevention though and radiation blockages are already present then it might be necessary to flush or replace the entire unit in order to get your car back up and running safely again. So if you spot excess liquid coming from your overflow tank then don’t wait any longer. Take action now before larger problems arise!

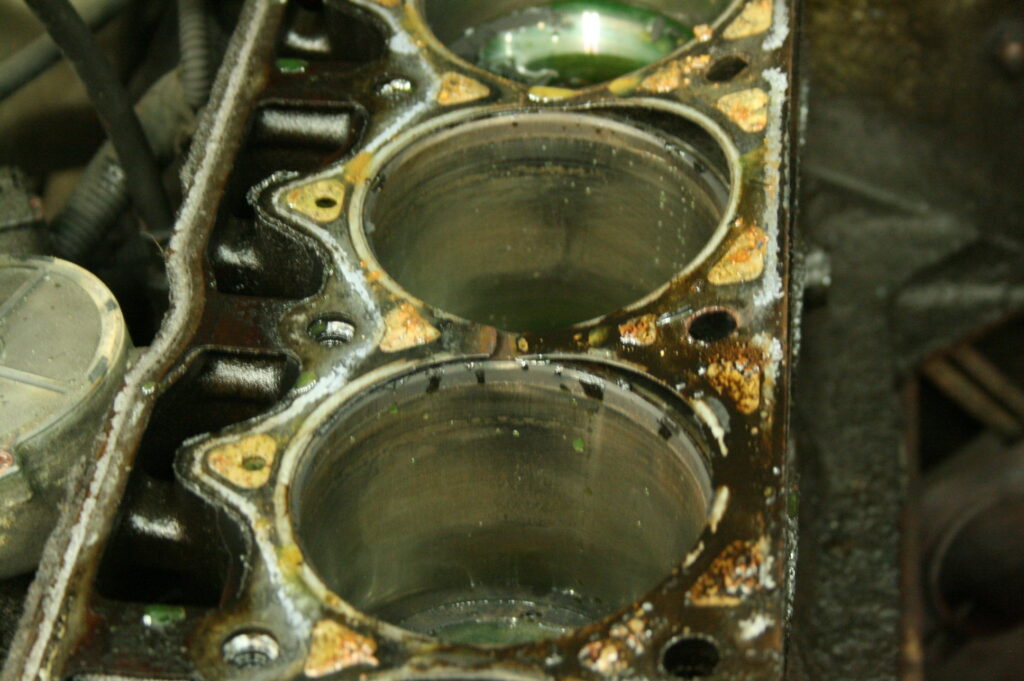

5. Blown head gasket

When it comes to overheated engines, coolant coming out of the overflow tank is a sign that something is seriously wrong. It could be due to a cracked radiator, a weak water pump, or even an air bubble in the cooling system. But, most often it’s an indication that the head gasket has blown.

A blown head gasket can result from severe overheating when extreme pressure builds up and forces open one or more openings in the gasket itself. While you might not notice the telltale signs of a blown head gasket right away – such as white smoke appearing from the tailpipe or oil flakes being visible in the coolant – coolant spilling out of the overflow tank is pretty much a sure sign.

When the head gasket fails, it causes internal pressure from high temperatures and combustion gases to create bubbles in your cooling system, giving off small traces of steam and causing coolant to boil over and bubble out.

In any case, if you detect coolant coming out of your vehicle’s overflow tank it’s best to have it professionally inspected for possible head gasket failure. Ignoring this symptom could lead to further damage inside your engine and a repair bill that will cost more than necessary!

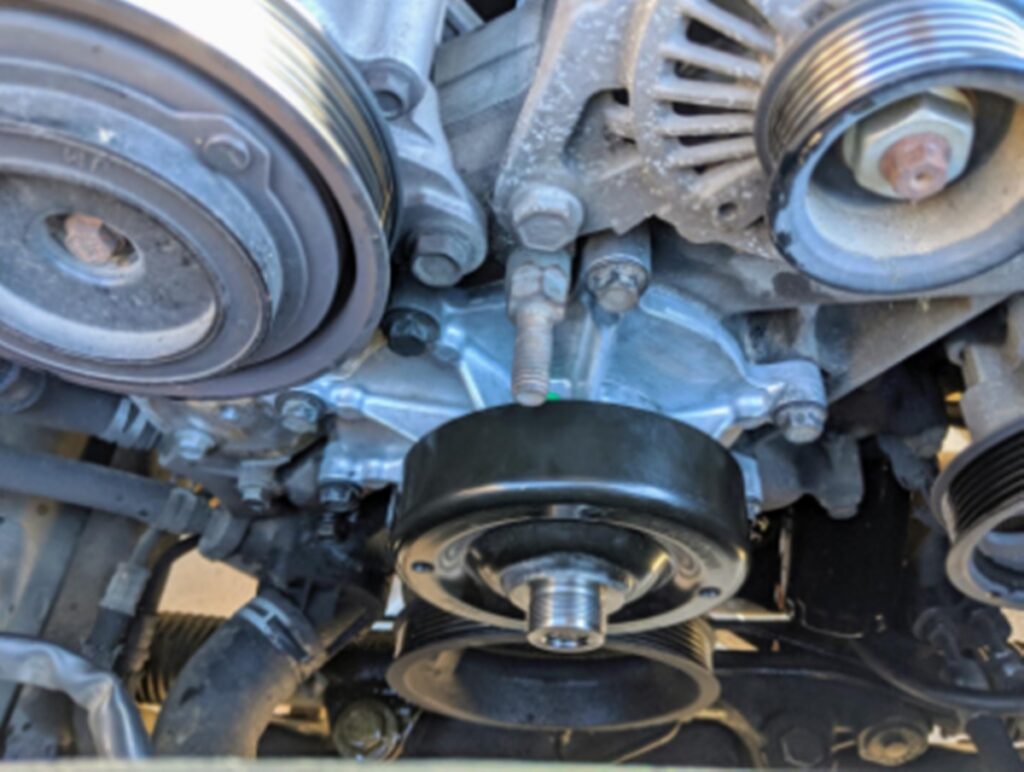

6. Faulty water pump

With regular use, cars encounter a variety of issues that can be difficult to diagnose. In some cases, a problem may involve coolant coming out of the overflow tank. At first glance, it might appear that the coolant is simply leaking. But, in reality, this symptom could point to a faulty water pump. As time passes, seals inside the pump can weaken and fail, allowing internal pressure to escape from the system.

One sign of an aging water pump is liquid dripping from the overflow container as the pressure it creates forces coolant out. If suspicion falls on a water pump issue, mechanics will need to identify any worn components or signs of overheating and replace them accordingly.

With prompt attention, car owners can keep their rides running for many years to come without facing further complications due to insufficient cooling system maintenance. To avoid costly repairs and added aggravation down the road, those dealing with coolant coming out of their overflow tank should get it checked out quickly.

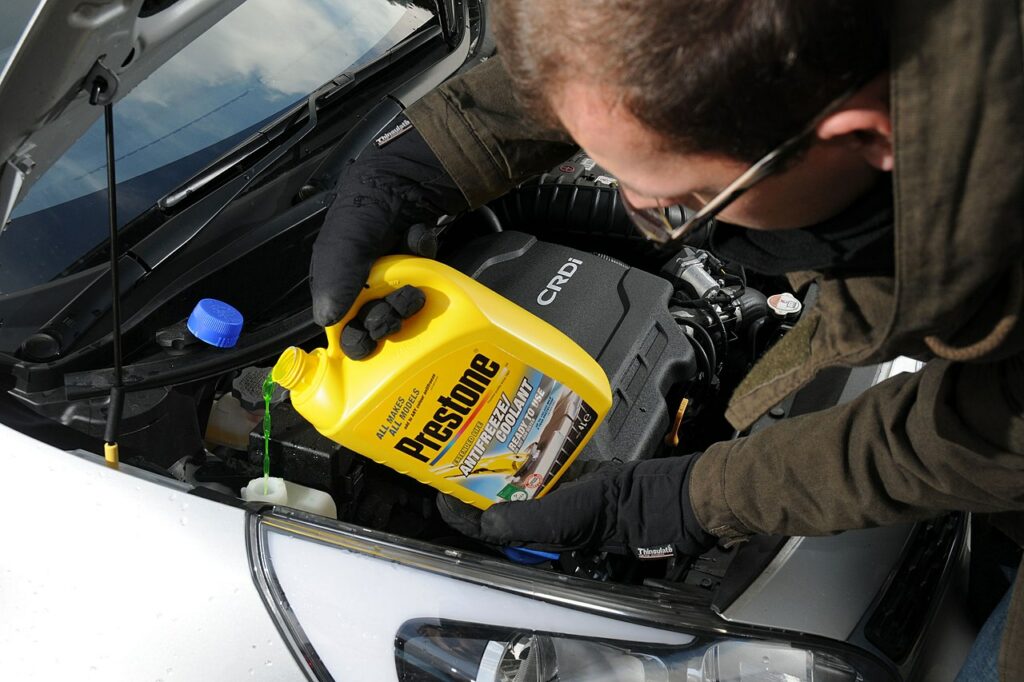

Should I Fill My Overflow Tank?

When it comes to the cooling system of your car, there are a few things you need to know. One of these is how much coolant should be added to the overflow tank. This is essential because too much or too little can place unnecessary strain on the components of the cooling system.

Generally, you should aim to keep between one-quarter and one-third of the overflow tank full with antifreeze/coolant. This will help ensure that all components remain within optimal working temperature without putting undue stress on the engine.

In any case, always make sure to check your owner’s manual for specific instructions regarding adding or replacing coolant in your vehicle. By carefully following these directions, you can help safeguard your car from any damage resulting from using too much or too little coolant in its overflow tank.



Vide Polowenski, Senior Mechanic

The information in this article is current and up-to-date in accordance with the latest mechanic SOPs.
