P0401: EGR Flow Insufficient Detected – Meaning, Symptoms, Causes, and How To Fix It




The P0401 is a diagnostic trouble code that stands for Exhaust Gas Recirculation (EGR) Insufficient Flow Detected that suggests there is a blockage in the EGR tube that restricts the flow of the recirculated exhaust gases to the engine.

Modern engines use the EGR system to reduce engine output emissions, so when this code appears you have to do something about it. In this blog post, I will talk about what the P0401 code means, its symptoms, its causes, and how to fix it.

Key Takeaway

  • The P0401 trouble code stands for EGR Flow Insufficient Detected.
  • It can affect almost all vehicles on the market.
  • The P0401 trouble code can be caused by clogged EGR passages, a bad EGR valve, faulty sensors, insufficient vacuum supply to the EGR valve, damaged wiring or a bad connector, or issues with the onboard computer.
  • The most common symptoms of a P0401 code include check engine light, pinging (pre-ignition knock), reduced engine power, rough idle, reduced fuel economy, and engine stalling.
  • It’s not safe to drive with a P0401 code because the engine can overheat.
  • To diagnose a P0401 code, you need to scan your vehicle with an OBD2 scanner physically remove the EGR valve and inspect it. There shouldn’t be any soot buildup on the EGR valve.
  • Repairing the P0401 code costs between $120 – $221 depending on make and model.

What Does The P0401 Code Mean?

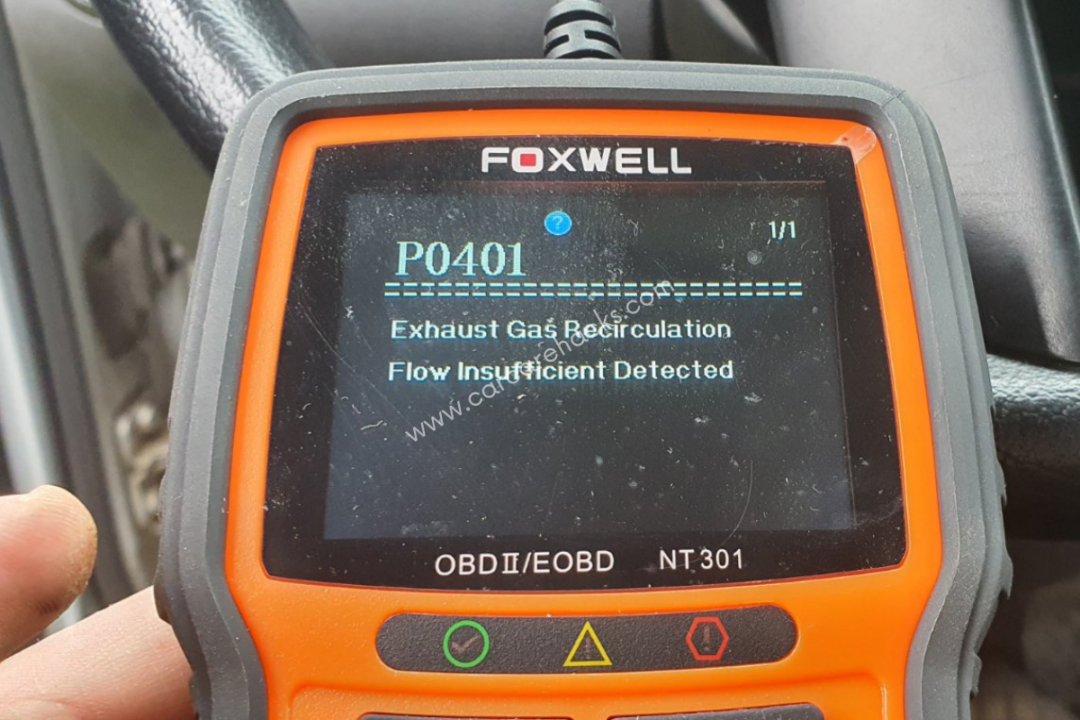

P0401 EGR Flow Insufficient Detected – Meaning, Symptoms, Causes, and How To Fix It

The P0401 is a diagnostic trouble code that stands for Exhaust Gas Recirculation (EGR) Flow Insufficient Detected. Basically, this code means that there is something that restricts the flow of recirculated exhaust gases going to the engine.

Exhaust Gas Recirculation (EGR) is an efficient way for cars to reduce emissions. This process works by re-introducing the exhaust gases, after they are filtered and cooled, back into the engine cylinders, thereby reducing the amount of fresh air that enters the combustion chamber.

Introducing these filtered exhaust gases, reduces fuel consumption and lowers the interior temperatures of a car. EGR systems are designed such that the right proportion of exhaust gas is introduced at just the right times to create optimum efficiency.

If the flow of the recirculated exhaust gases is restricted, it can affect the performance of the engine and cause the engine to run rough engine misfire, and decrease fuel economy from improper combustion cycles.

What Are The Possible Causes of the P0401 Code?

More than one thing can cause the P0401 trouble code. However, regardless of the cause, the P0401 code is triggered when there is an insufficient flow within the EGR system. Here are all of the causes for a P0401 code:

1. Clogged EGR passages

Exhaust gas recirculation (EGR) insufficient flow is a common problem in automobile engines and can be caused by clogged passages. The EGR system helps to reduce exhaust emissions by recirculating the exhaust gases back to the combustion chamber. This means that the engine is counting on the constant flow of recirculated exhaust gases for the combustion process. If the EGR passages are clogged, there will be an insufficient flow of the recirculated exhaust gases and the P0401 code will be triggered.

2. Bad EGR valve

A P0401 trouble code indicates that a problem has been detected in the Exhaust Gas Recirculation (EGR) system, typically due to a bad EGR valve.

The EGR valve is an important part of a car’s emission control system, as it helps reduce the amount of nitrous oxide (NOx) emissions released into the atmosphere. In simple terms, the EGR valve transfers part of an engine’s exhaust back into the intake manifold in order to be burned for a second time. This lowers NOx levels in the exhaust gasses and reduces air pollution.

By routing exhaust gasses back into the intake manifold, it also cools down combustion temperatures and helps prevent “knocking,” which occurs when fuel and air ignite before they’re supposed to due to high pressure or temperature. Over time, however, this process causes sulfuric acid to build up on the EGR valve, making it increasingly dirty and less effective at controlling emissions.

3. Faulty sensors

Two sensors can trigger a P0401 when they fail: the differential pressure sensor and the manifold absolute pressure (MAP) sensor.

A differential pressure sensor plays a critical role in the operation of a car’s engine by measuring the difference in atmospheric and intake manifold air pressure. By monitoring this data, the sensor is able to detect the least amount of vacuum that tries to draw air or fuel into the combustion chamber and helps maintain an ideal running temperature for better efficiency.

This data is then used to determine approximately when spark plugs should fire when valves should open and close, how much-unburned gas moves out of the cylinder, and finally how much fuel is needed for optimal performance.

When the differential pressure sensor fails, it stops measuring the exhaust backpressure correctly and sends out a faulty reading to the vehicle’s computer, tricking it into thinking that there is a problem with the exhaust gas recirculation and a P0401 code will be triggered.

The Manifold Absolute Pressure (MAP) Sensor is a key component of any car and plays an essential role in a car’s performance. When the engine runs, the MAP Sensor measures the amount of air sent to the engine from the air intake system, which helps the car’s main computer decide how much fuel to add during combustion. The combination of more or less fuel and air mixture then allows for increased power output, better fuel efficiency, and improved emissions quality.

When the MAP sensor fails, it no longer measures the air flow rate correctly and the vehicle’s computer doesn’t know how much exactly air or recirculated exhaust gases are in the combustion engine ready to be burned. This will trigger a MAP sensor code, but can also trigger a P0401 code.

4. Insufficient vacuum supply to the EGR valve

A common automotive problem is an insufficient vacuum supply to the EGR (Exhaust Gas Recirculation) valve. This issue can arise in a few different ways, but it typically means that there is a lack of backpressure on the engine. The most common causes can range from a clogged air filter to broken or worn-out engine parts, such as gaskets or hoses. Insufficient vacuum supply to the EGR valve will cause a P0401 code.

5. Damaged wiring or a bad connector

A P0401 code is generated when the exhaust flow of a vehicle’s engine is restricted due to damaged wiring or a bad connector. This code can trigger the ‘check engine’ light and should be handled as soon as possible in order to avoid any further damage. Worn-out or broken wires may need to be replaced, while corroded connectors might need to be unplugged, cleaned, and reconnected.

The EGR gets electric power to it through a cable that is connected to the car battery. If this cable gets damaged, the EGR won’t be able to perform its job and a P0401 code will be triggered.

6. Issues with the onboard computer

Diagnosing a P0401 code can be a difficult challenge for many motorists who don’t possess a wealth of automotive knowledge. The fault is often due to an EGR (Exhaust Gas Recirculation) system emission control malfunction caused by faulty or dirty components, or even something as simple as a loose vacuum hose connection. It can also be caused by an onboard computer malfunction. If the PCM (powertrain control module) starts incorrectly reporting oxygen sensor data, this sets off the P0401 code.

(See also: P0029 OBD-II Trouble Code: Exhaust Valve Control Solenoid Circuit Range/Performance (Bank 2)

What Are The Common Symptoms of The P0401 Code?

If your vehicle has a P0401 code, you may experience some or all of these symptoms:

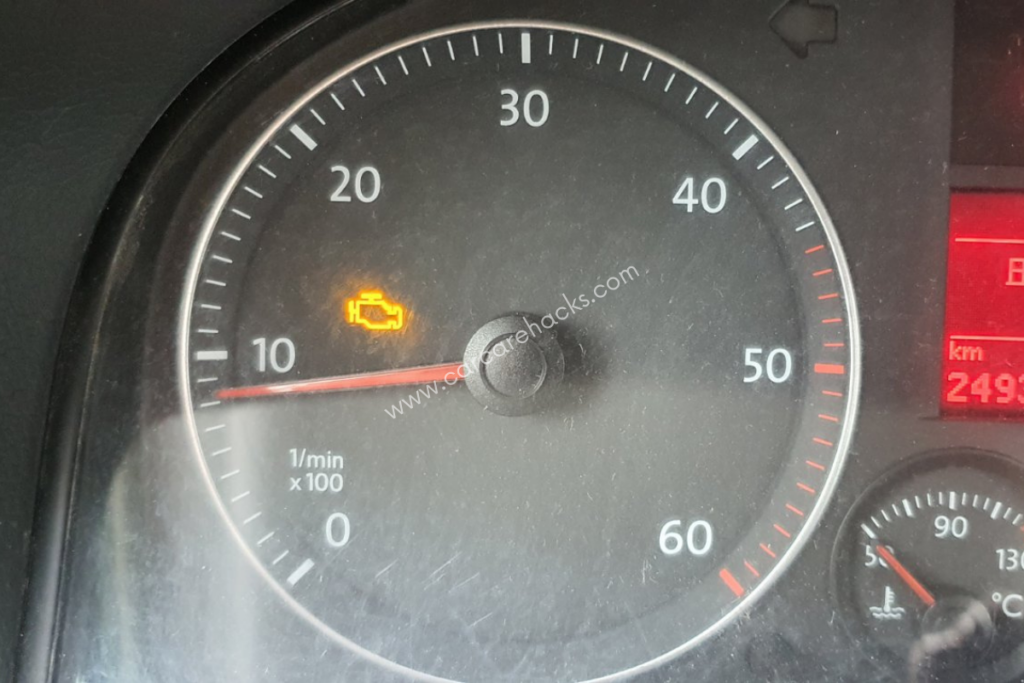

1. Check engine light

P0401 EGR Flow Insufficient Detected – Meaning, Symptoms, Causes, and How To Fix It

Since the EGR valve doesn’t have a separate warning light, a check engine light is illuminated when the P0401 code is triggered, indicating an emissions-related problem within your vehicle’s engine. The EGR valve opens and closes numerous times as you drive, allowing exhaust gases to re-circulate and mix with fresh air in order to lower nitrogen oxides.

If the flow of exhaust gases is too low, it can cause further issues in the emissions system leading to the P0401 code and hence activating the check engine light.

2. Pinging (pre-ignition knock)

Pre-ignition knock is a common car issue that can manifest itself as a rattling sound or knocking noise when accelerating. P0401 is a diagnostic code indicating an exhaust gas recirculation (EGR) system flow malfunction, which can directly cause a pre-ignition knock. The main culprit behind P0401 causing pre-ignition knock is the high and/or erratic cylinder temperature it causes.

Since pre-ignition happens due to premature ignition of the air/fuel mixture before the spark plug firing, unruly temperatures in the cylinders exacerbate the chances of this happening. In order to address this issue, you must inspect both your EGR and related components to get your vehicle running smoothly again.

3. Reduced engine power

P0401 EGR Flow Insufficient Detected – Meaning, Symptoms, Causes, and How To Fix It

P0401 is a code that indicates an inefficient exhaust gas recirculation (EGR) system. When this occurs, a significant decrease in engine power can be expected due to the blocked flow of exhaust gasses and decreased oxygen intake for combustion.

4. Rough idle

Poor engine performance is never fun to experience, but it can often be related to an easy-to-identify underlying cause. In this case, a rough idle may be due to a P0401 code. This code triggers when the vehicle’s computer gets information that the flow of the recirculated exhaust gases is lower than predetermined.

This results in an uneven air-to-fuel ratio and therefore an uneven combustion cycle. If your vehicle has a P0401 code, you will experience a rough idle.

5. Reduced fuel economy

P0401 is an OBD-II diagnostic trouble code that signals your engine’s computer has detected an issue in the exhaust gas recirculation (EGR) system. While rare, this problem can affect your engine’s performance and reduce fuel economy due to the fact that it adversely affects the air/fuel ratio while driving.

Specifically, when the EGR valve sticks or malfunctions, exhaust gases are not able to recirculate into the intake manifold as they should, leading to excessive levels of fuel being burned and ultimately lowered efficiency.

6. Engine stalling

P0401 is a code that is used to detect an issue with the Exhaust Gas Recirculation (EGR) system. Without an effective EGR system, engines can stall. This happens because when the EGR valve malfunctions or is blocked, it can prevent exhaust gasses from recirculating back into the intake system which then impacts overall emissions.

As a result, the engine will lack adequate airflow and cause it to run too rich leading to a decrease in power, stalling, and potentially permanent engine damage if not addressed quickly.

Is It Safe To Drive With a P0401 Code

It is not safe to drive long distances with a P0401 code because it will cause the engine to overheat. The exhaust gases that are recirculated back into the combustion chamber contain less oxygen which means a lower combustion temperature.

If the flow of the recirculation of the exhaust gases is low, and the vehicle is actually counting on them, it will lead to a combustion process where there is a lot of fuel and just a bit of fresh air which will increase the combustion temperature and cause the engine to overheat.

Driving with a P0401 code can be a risky proposition and should not be undertaken without first researching the issue. It is important to repair any problems associated with this code before attempting to drive, as any discrepancies in the EGR system can cause serious engine damage if left unchecked.

To ensure safety while driving with a possible P0401 code, it is recommended that vehicle owners have their cars inspected and serviced by a mechanic before beginning a journey.

How To Diagnose The P0401 Code

P0401 is the EGR low or insufficient flow code depending on the manufacturer’s definition. EGR is a system that recirculates a certain amount of the exhaust gas back into the intake during certain circumstances while the engine is running. By doing so, it reduces NOx emissions in the exhaust. Over time, the EGR system can get faulty and throw a P0401 code. Here is how to diagnose the P0401 code:

1. Scan the vehicle for trouble codes

P0401 EGR Flow Insufficient Detected – Meaning, Symptoms, Causes, and How To Fix It

Scanning the vehicle with an OBD2 scanner is obvious. You need to make sure that you are getting a P0401 trouble code. However, this code can be triggered if the EGR valve is faulty, there is a vacuum leak, or some of the hoses are clogged. So, even though you will get the P0401 code on the OBD2 scanner, you have to actually perform some tests in order to determine what exactly is causing the insufficient flow of gases.

2. Locate the EGR valve

Locating the EGR valve on your car might seem like a daunting task at first, but with a bit of patience and some basic knowledge, it is actually quite simple. It’s important to acknowledge that the location of the EGR valve can vary between vehicles, however in general they tend to be in the same area.

The EGR valve is located between the exhaust manifold and the intake manifold. Depending on the model, the EGR valve can have a vacuum line or a connector attached at the top.

3. Remove the EGR valve

P0401 EGR Flow Insufficient Detected – Meaning, Symptoms, Causes, and How To Fix It

The EGR valve is held in place by three bolts which you have to remove. Also, the EGR valves are either connected to a vacuum line or an electrical connector. You will need to disconnect it so you can pull it out.

4. Test the EGR valve

P0401 EGR Flow Insufficient Detected – Meaning, Symptoms, Causes, and How To Fix It

The main reason why EGR valves fail is carbon buildup from all the exhaust gases. But before you continue cleaning the valve, it is important to first check if it’s actually working. If you look at the EGR valve, you will see a rod and a diaphragm. Hook up a vacuum line and then suck on it. As you do that, the diaphragm should move. If it does, then you can proceed to clean the valve. However, if the diaphragm is ripped and not moving, you should get a new EGR valve.

5. Inspect the housing

If the EGR valve was dirty and you cleaned it, awesome. Now it is time to check the housing where the EGR valve sits. If there was carbon buildup on the EGR, there is a great chance that the housing is also full of carbon. You can go ahead and clean it with a screwdriver, just make sure not to damage any of the threads.

How Much Does It Cost To Repair P0401 Code

The cost to repair the P0401 code will depend on the make and model. Check out the table below as I provide info for different vehicles.

VehiclePart CostLabor CostTotal Cost

What Repairs Can Fix The P0401 Code

The most common repairs that can fix the P0401 code are either cleaning the EGR valve or replacing it. In most cases, the EGR valve is stuck from the carbon deposit buildup and is causing an insufficient flow of exhaust gases, hence the P0401 code. However, after cleaning the EGR valve, if the code is still present, you can go ahead and replace it with a new EGR valve.

How To Fix The P0401 Code

P0401 EGR Flow Insufficient Detected – Meaning, Symptoms, Causes, and How To Fix It

Fixing the P0401 code requires removing, cleaning, or replacing the EGR valve. Here is how to do that:

1. Locate and remove the EGR valve

The EGR valve is located between the intake manifold and the exhaust manifold. It has a vacuum line or an electrical connector on top of it. Disconnect the vacuum line or the electrical connector first. Then, proceed to remove the three bolts that hold the EGR valve in place.

2. Test the EGR valve

Before cleaning the EGR valve, you have to make sure that the valve is working properly. To do so, first inspect the inside of the valve. There you will find a rod and a diaphragm. The diaphragm shouldn’t have any damage and should move up and down. Press the diaphragm and close the top of the EGR valve to check if the valve can hold a vacuum. If the diaphragm falls back, you should replace the EGR valve. However, if the test goes as it should and the valve holds a vacuum, proceed to clean.

3. Clean the EGR valve

To clean the EGR valve, you can use any type of solvent. I usually use a brake cleaner which does a great job. Start by spraying inside the EGR valve, just make sure to stay away from the vacuum line or the electrical harness. After spraying all of the openings, let the EGR valve soak for five hours. The solvent does require some time to remove the carbon deposits.

4. Reinstall the EGR valve

Once the EGR valve has been cleaned, slide it back in place and reinstall the bolds. Make sure they are super tight. Then go ahead and connect the vacuum line or electrical connector. Start the vehicle and make sure that there are no exhaust leaks. You can do this by placing your hand near the EGR valve.



Vide Polowenski, Senior Mechanic

The information in this article is current and up-to-date in accordance with the latest mechanic SOPs.
